INMUNOLOGÍA - MAGLUMI 600 (PEQUEÑO)

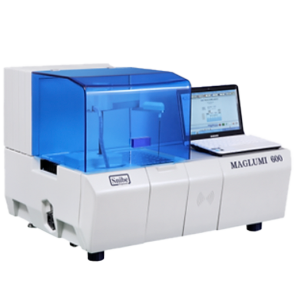

Maglumi 600
Chemiluminescence Immunoassay (CLIA) System


CLIA uses two important technologies, one is labeling technology which determines reaction mode; and the other is separation technology which determines the sensitivity, accuracy, and precision of the reagents.
Beneficios que obtendrás
Labeling Technology
Two types of labeling technologies are commonly used. One contains enzyme labels and the other contains non-enzyme small molecule labels. Enzyme label reagents are not so stable and are easily affected by the change of storage conditions. Maglumi system applies ABEI labels. ABEI is a non-enzyme small molecule with special molecular formula to enhance stability in acid and alkaline buffer. As fast chemiluminescence, ABEI chemical reaction with sodium hydroxide (NaOH) and Hyperoxide (H202) finishes the process in 3 seconds.
Separation Technology
Maglumi uses Nano Magnetic Microbeads, as separation technology, has been widely used in the field of CLIA. Compared with traditional separation technologies,it has advantages as following:
- It helps in enlarging the reaction area of antigens and antibodies to shorten the reaction time.
- Better and faster capture of the antigens and antibodies to enhance the sensitivity.
- As a liquid separation platform, it mixes thoroughly with the reagents to significantly reduce inter-or intra-assay discrepancies.
- Absorbs the antigens or antibodies through chemical reaction to enhance the accuracy.
Especificaciones
Principle of Luminescence:
- Non-enzyme involved flash chemiluminescence, long stability Of reagents
- ABEI label, stable in acid and alkaline buffers
Main Features:
- Throughput: up to 180 tests/hour
- 24 hours ready to use
- Time to first result:12 minutes
Modes of Operation:
- Random, Batch and STAT function
Sample Loading:
- Up to 16 sample tubes
- Continuous loading, STAT available
- Analyzer auto numbered
- LIS connection
- Refrigerated sample area with independent power supply
Reagent Loading:
- 4 reagents on board
- Continuous loading
- RFID reading
- Refrigerated reagent área
Reagent Features
- Integrated kit, ready-to-use, no pretreatment required
- Integrated kit including calibrator
- Using superparamagnetic microbeads
- RFD tag storing all info Of reagent
- RFID tag with built-in master curve
- 2-point calibration to adjust master curve
- Calibration stability: Max 4 weeks
Operation System
- Windows 7
- 10 inch notebook
Interconnection
- Connection to LIS via COM or network card
- Direct operation on LIS system to test
Dimensions Weight
- 88x56x50cm, 56kg
